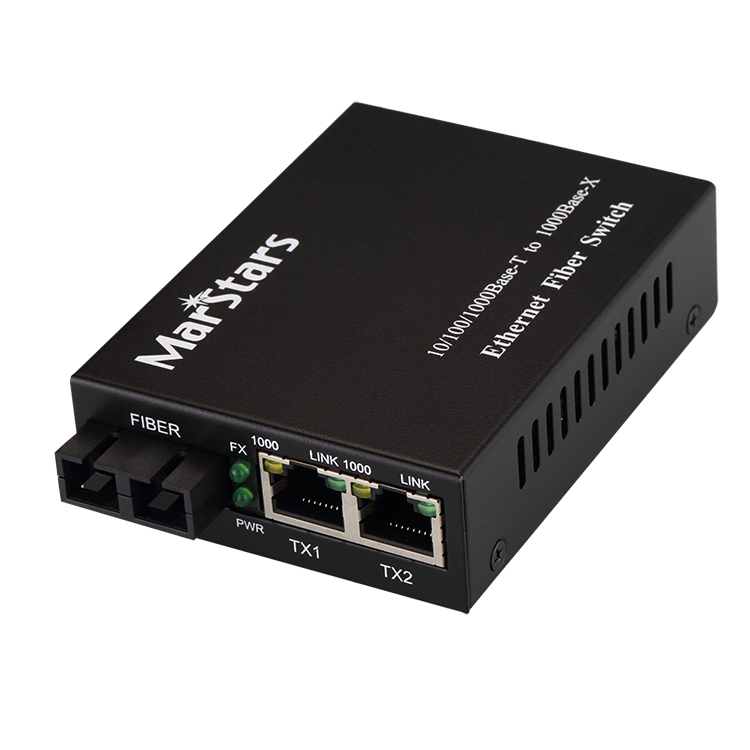

Marstars MT-FC4100 series is 10/100/1000M Gigabit Fiber transceiver that interconverts the electric signal of 1000Base–TX twisted pair and optical signal of 1000Base-TX. By fiber optic connecting, it extends the network transmission range from 550m to 80 KM. With these Gigabit media converters, they assist you to management your system easily.

千兆光纤收发器

Marstars MT-FC4100 series is 10/100/1000M Gigabit Fiber transceiver that interconverts the electric signal of 1000Base–TX twisted pair and optical signal of 1000Base-TX. By fiber optic connecting, it extends the network transmission range from 550m to 80 KM. With these Gigabit media converters, they assist you to management your system easily.
产品描述
简要概述:

Brief Introduction:
Marstars MT-FC4100 series is 10/100/1000M Gigabit Fiber transceiver that interconverts the electric signal of 1000Base–TX twisted pair and optical signal of 1000Base-TX. By fiber optic connecting, it extends the network transmission range from 550m to 80 KM. With these Gigabit media converters, they assist you to management your system easily.

技术规格:

• Comply with 802.3z & 802.3ab Standard
• TP port supports Auto-negotiation for automatic speed selection
• TP port supports automatic MDI/MDIX crossover
• Transmission distance: 550M / 10KM / 20KM / 40KM / 60KM /80KM
• Wave length: 850nm/ 1310nm/ 1550nm
• LED indicators: PWR, TX-LNK, TX-ACT, FX-LNK, FX-ACT, FDX
• Connector: two UTP RJ-45 connector and one SC connector
• Power: External or Internal power supply
• Excellent quality gurantee on whole solution design, built-in heat emission fan to ensure high stable working performance
• Operating temperature: 0 ℃ -50 ℃
• Storage temperature: -40~ 70 ℃
• Humidity: 5-90%(non-condensing)

型号描述:
Model No. Description
MT-FC4100-05 10/100/1000M Media Converter Dual Fiber MM Support 500m
MT-FC4100-20 10/100/1000M Media Converter Dual Fiber SM Support 20km
MT-FC4100-40 10/100/1000M Media Converter Dual Fiber SM Support 40km
MT-FC4100-60 10/100/1000M Media Converter Dual Fiber SM Support 60km
MT-FC4100-80 10/100/1000M Media Converter Dual Fiber SM Support 80km
MT-FC4100D-20A/B 10/100/1000M Media Converter Single Fiber SM Support 20km
MT-FC4100D-40A/B 10/100/1000M Media Converter Single Fiber SM Support 40km
MT-FC4100D-60A/B 10/100/1000M Media Converter Single Fiber SM Support 60km
