工业级光纤收发器

Marstars MT-FI4100SFP series is industrial 10/100/1000M Gigabit Fiber transceiver that interconverts the electric signal of 1000Base–TX twisted pair and optical signal of and 10/100/1000Base-TX. By fiber optic connecting, it extends the network transmission range from 550m to 80 KM. With these Gigabit media converters, they assist you to management your system easily.

工业级光纤收发器

Marstars MT-FI4100SFP series is industrial 10/100/1000M Gigabit Fiber transceiver that interconverts the electric signal of 1000Base–TX twisted pair and optical signal of and 10/100/1000Base-TX. By fiber optic connecting, it extends the network transmission range from 550m to 80 KM. With these Gigabit media converters, they assist you to management your system easily.
产品描述
简要概述:

Brief Introduction:

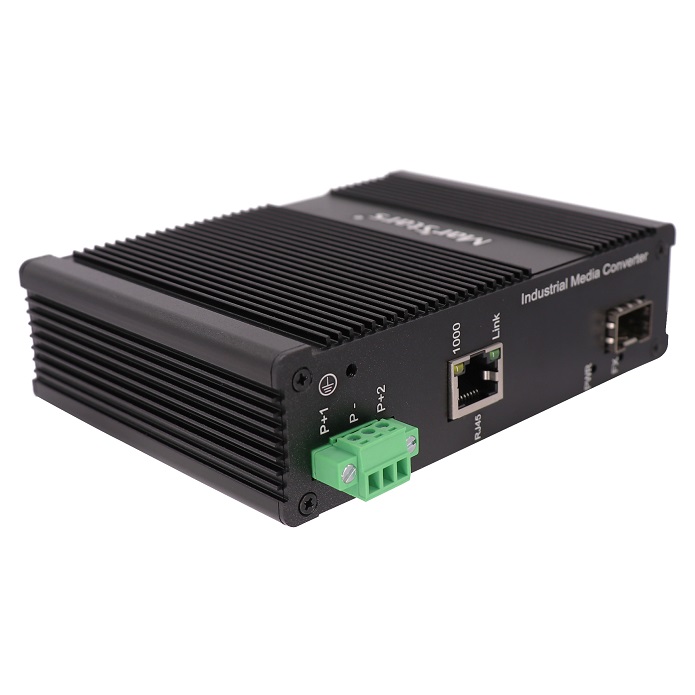

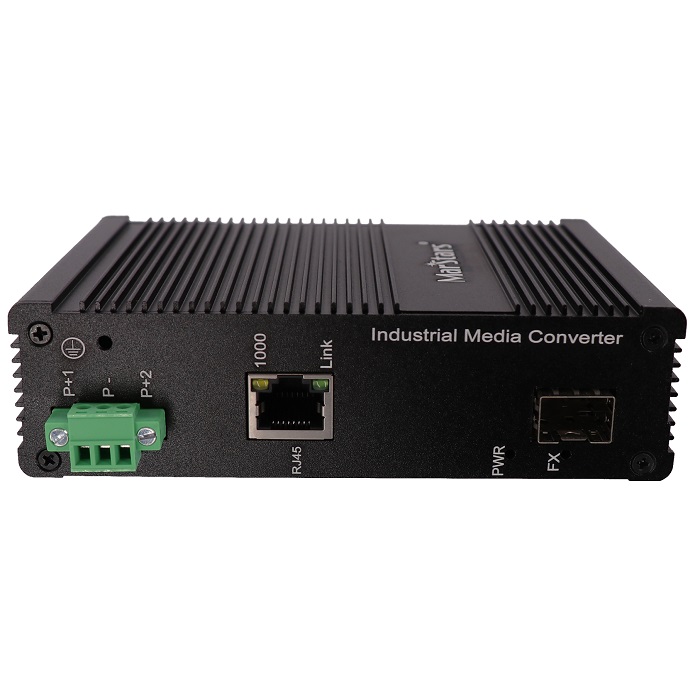

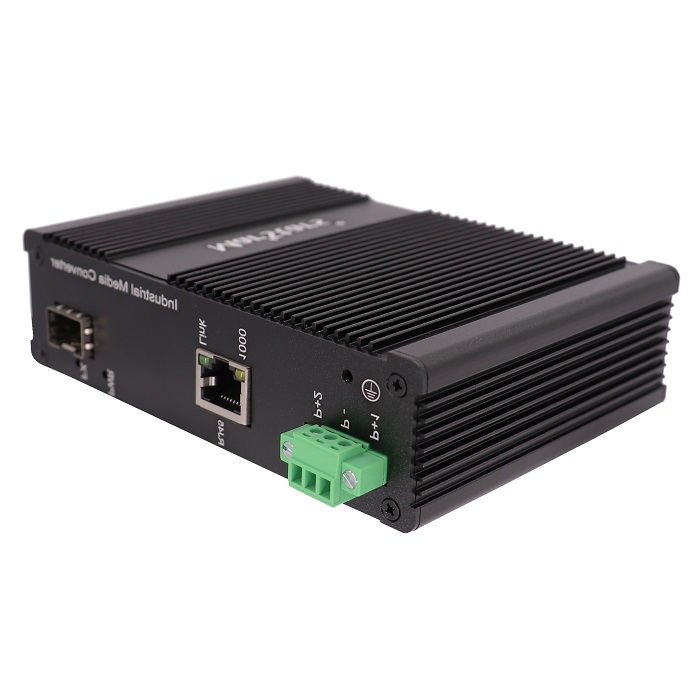

MT-FI4100SFP is a new generation Power over Ethernet Industrial media converter with 1-Port 10/100/1000Base-TX and 1-Port 1000Base-FX Fast SFP that provide stable and reliable Ethernet transmission offered by Marstars,with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

With dual power input design, MT-FI4100 can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 75°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

技术规格:
Physical Port
RJ45 port and speed 1x10/100/1000Base-TX
Fiber port and speed 1x1000Base-FX SFP
Parameters
Ethernet standards IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3ah IEEE802.1X IEEE802.1Q
Packet buffer 2Mbits
Maximum packet length Up to10k Bytes
MAC address table 8K
Transmission mode Store and Forward(full/half duplex mode)
Exchange property Delay time: < 7μs Backplane bandwidth: 1Gbps Packet forwarding rate: 148810 (64Byte)
LED Indicator
Power Connect-always
RJ45 Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber Link/Act: connect-always; data exchange-twinkle
Power Information
Power access mode Phoenix terminal, DC seat
Redundant power input DC 9-56V,DC 5V
Overload protection Yes
Power reverse Support
Power consumption Full-load<15W
Physical Property
Protection grade IP40 aluminum case
Cooling mode Natural cooling, no fan design
Dimensions 120mm x 87mm x 35mm (L x W x H)
Installation mode DIN trail/wall-mountable
Weight 500g
Working Environment
Operating Temperature -40℃~75℃
Operating Humidity 5%~90% non-condensing
Storage -40℃~85℃
Warranty
MTBF 500,000 hours
Defects Liability Period 3 year warranty, lifetime technical support

型号描述:
MT-FI4100SFP Industrial Media Converter Gigabit SFP slot with 1x10/100/1000Base-TX
MT-FI4102SFP Industrial Media Converter Gigabit SFP slot 10/100/1000Base-TX
MT-FI4100MM Industrial Media Converter Gigabit MM 2KM with 1x10/100/1000Base-TX
MT-FI4102MM Industrial Media Converter Gigabit MM 2KM with 2x10/100/1000Base-TX
MT-FI4100SM Industrial Media Converter Gigabit SM 20KM with 1x10/100/1000Base-TX
MT-FI4102SM Industrial Media Converter Gigabit SM 20KM 10/100/1000Base-TX
MT-FI4104SFP Industrial Media Converter Gigabit SFP slot with 4x10/100/1000Base-TX
