产品描述

简要概述:

-1x10/100/1000Base-TX RJ45 ports, 1x1000Base-FX Fast SFP ports

-Support Auto-MDIX, and full/half duplex self-negotiation mode

-Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission

-Support 10K bytes giant frame, compatible with various extension protocol

-8K MAC address table

-Support IEEE802.3az energy efficient Ethernet technology

-Support IPv6 Protocol

-Electric 4KV surge protection, easy to use in outdoor environment

-Complete status indicator, working state at a glance

-Power input polarity protection design, no worry about wrong operation

-Metal case, no fan design

-Installation method: DIN-rail /Wall mounting

技术规格:

Physical Port
Copper Ports	1 10/100/1000Base-T RJ45 auto MDI-MDI-X
Fiber Ports	1 1000Base-SX/LX/BX SFP interfaces
Parameters
Ethernet standards	IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3ah IEEE802.1X IEEE802.1Q
Bandwidth	12.0Gbps
Buffer Memory	2M bits on-chip buffer memory
Jumbo Frame	Up to10k Bytes
MAC address table	8K entries
ESD Protection	6KV
Transmission mode	Store and Forward(full/half duplex mode)
LED Indicator
Power	Connect-always
RJ45	Link/Act: connect-always; data exchange-blink Speed light: 100Mbps-always; 10Mbps-blink
Fiber	Link/Act: connect-always; data exchange-blink
Power Information
Power access mode	Phoenix terminal Block
Redundant power input	9-56VDC
Overload protection	Yes
Power reverse	Support
Power consumption	Full-load<10W
Power over Ethernet (For item with POE Function)
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Output	Per port 54V DC Max. 30 watts
PoE Power Budget (max.)	40W maximum
Number of PoE Ports	1
Physical Property
Protection grade	IP40 aluminum case
Cooling mode	Natural cooling, no fan design
Dimensions	130mm x 94mm x 35mm (L x W x H)
Installation mode	DIN-rail / wall-mountable
Weight	500g
Working Environment
Operating Temperature	-40℃~75℃
Operating Humidity	5%~90% non-condensing
Storage	-40℃~85℃
Warranty
MTBF	50,000 hours
Defects Liability Period	3 year warranty, lifetime technical support
Certification Standard
EMI	FCC Part15 Subpart B Class A,EN 55022 Class A
EMS	EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety grade	EN60950-1

Ordering Info

Model No.	Description
MT-FI4100-1S	Gigabit Industrial Media Converter with SFP slot
MT-FI4100-1S-1P	Gigabit POE Industrial Media Converter with SFP slot and POE+ function (1*POE+)
MT-FI4100-1F	Gigabit Industrial Media Converter with 1-Port 1000Base-Fx SM SC 20km
MT-FI4100-1F-1P	Gigabit POE Industrial Media Converter with 1-Port 1000Base-Fx SM SC 20km (1*POE+)

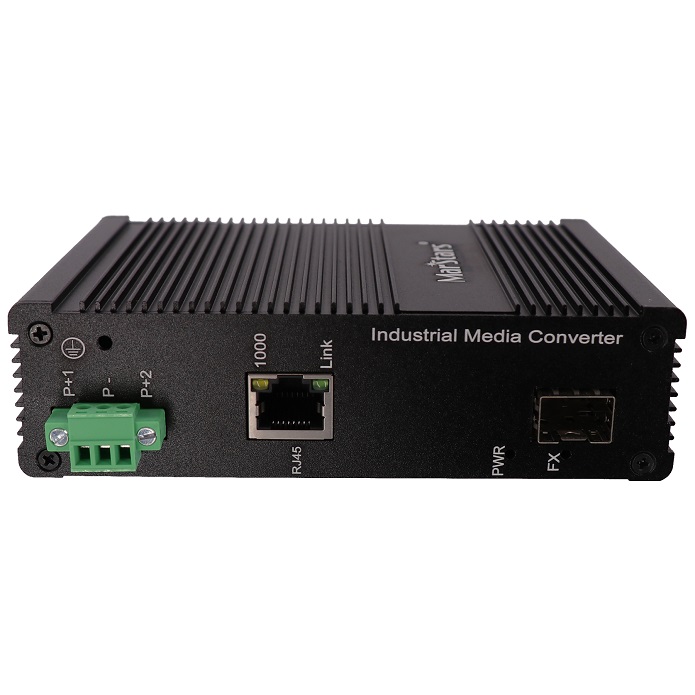

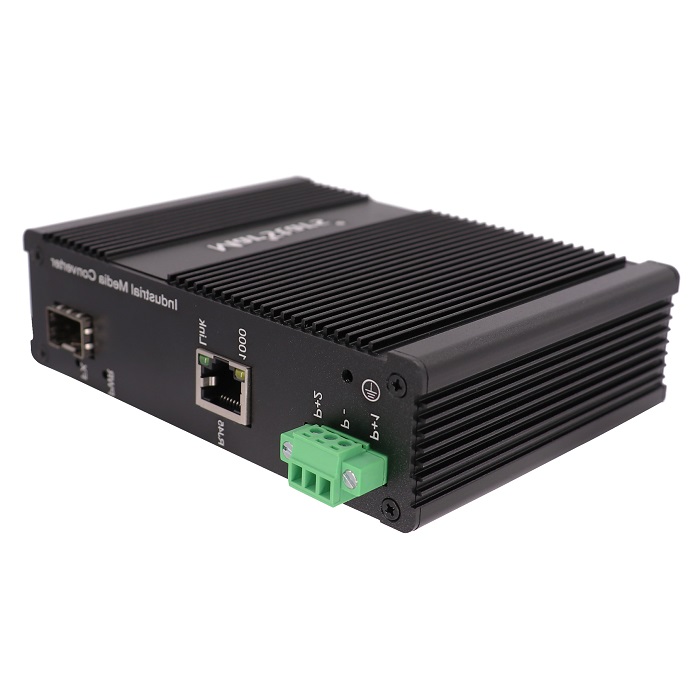

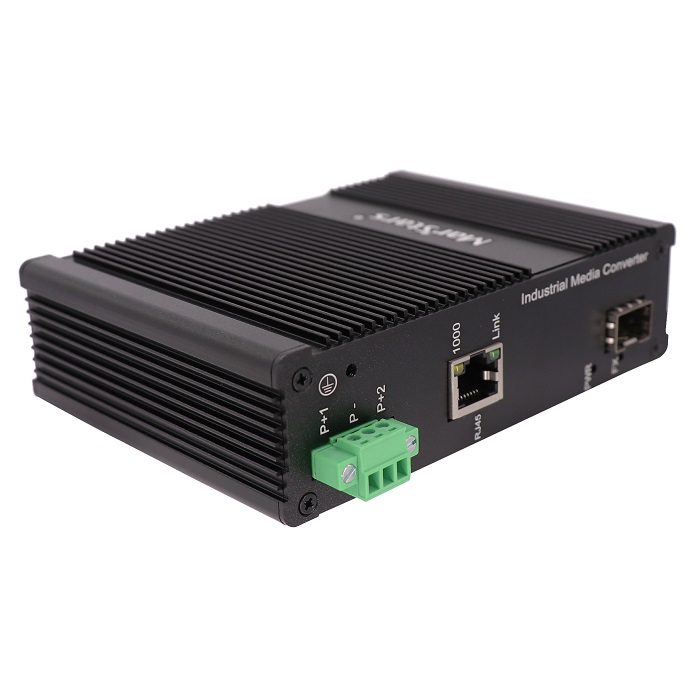

Gigabit Industrial Media Converter
