千兆2光8电工业级POE交换机

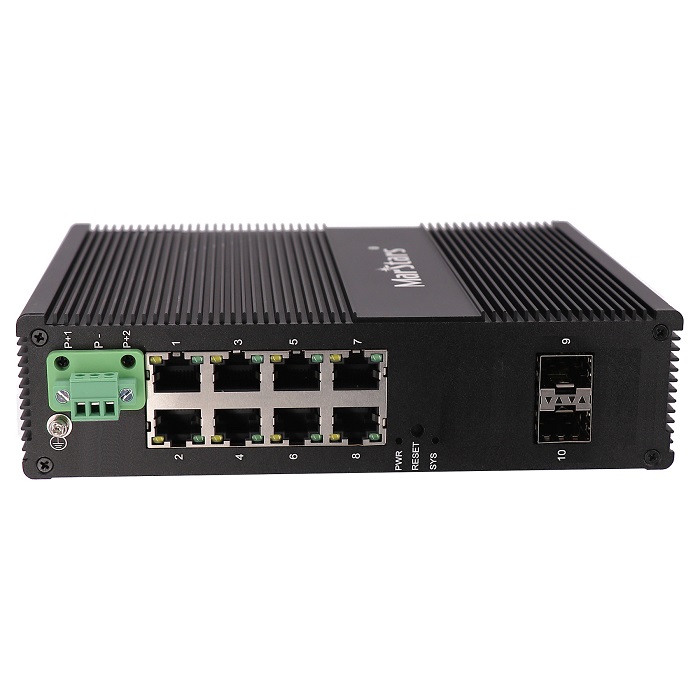

8-Port 10/100/1000Base-Tx and 2-Port 1000Base-Fx Industrial Fiber Switch

千兆2光8电工业级POE交换机

8-Port 10/100/1000Base-Tx and 2-Port 1000Base-Fx Industrial Fiber Switch
产品描述
简要概述:

• 8 IEEE 802.3af-compliant PoE and Ethernet combo ports
• Up to 15.4 watts at 48 VDC per PoE port
• Intelligent power consumption detection and classification
• Redundant dual VDC power inputs
• Support for OP-Ring (Recovery time<20ms) ,RSTP/STP/MSTP
• -40 to 80℃operating temperature range (T models)
• Support for WEB, CLI, Telnet/serial console, Windows utility and SNMP Management
• Non-blocking store-and-forward shared-memory switch architecture
• MAC address:8K
• Port Configuration
• RJ45 Port: Auto-negotiation, 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5
• 1000Base-FX Optical Port: SFP module
• Single-mode:20, 40, 60, 80, 100,120Km,optional
• Multi-mode: 550M
• Wavelength: 850nm, 1310 nm, 1550nm
• DOWNLOAD PROGRAM Port: Based serial network management (RS-232), RJ45
• Alarm output interface: One relay alarm output. Support power, port link and ring network alarm
• Indicator: Port link, ring fault/abnormity alarm indication 10M/100M Rate, run indication

技术规格:
Technical Parameter:
Access Method: 10/100/1000Mbps
Standard: IEEE802.3, IEEE802.3u,IEEE 802.3af/at
RJ45 Port Auto-negotiation, 10/100/1000Base-T, Full/Half Duplex, Auto-MDI/MDIX
Interface Port 8* 10/100/1000Base-TX and 2* 1000Base-FX
Wavelength: 850nm/1310nm/1550nm

Distance:
Multi-mode:550Km
Single-mode: 20/40/60/80/100/120Km



CAT5:<100m

Fiber Ports: 1000BaseFX ports (SC/ST/FC/LC connector, optional)
Flow Control: Full-duplex and Duplex Back pressure
MAC address: 8K
Indicator: Port link, ring fault/abnormity alarm indication 10M/100M Rate, run indication
DOWNLOAD PROGRAM Port: Based serial network management (RS-232), RJ45
Power Supply:

48V DC (46~50VDC) ,Redundant power input

Connector: 6 pin terminal

Overload Current Protection

Support dual power backup

Support dual power alarm input

Operating Temperature: -40 ~ +80 ℃
Humidity: 5%~95%  (non-condensing)
Storage Temperature: -40~ +85 ℃
Dimension: 60mm (H)* 112mm (W)* 138mm (D)
House Protection: IP40 protection, Aluminium Alloy
Installation: DIN-Rail or wall mounting
Weight 760g


Ordering Info
Model No. Description
MT-FI4208-2S Gigabit Industrial Switch 8-Port 10/100/1000Base-Tx and 2-Port 1000Base-Fx SFP slot
MT-FI4208-2S-8P Gigabit POE Industrial Switch 8-Port 10/100/1000Base-Tx and 2-Port 1000Base-Fx SFP slot (8*POE+)
MT-FI4208-2F Gigabit Industrial Switch 8-Port 10/100/1000Base-Tx and 2-Port 1000Base-Fx SM SC 20km
MT-FI4208-2F-8P Gigabit POE Industrial Switch 8-Port 10/100/1000Base-Tx and 2-Port 1000Base-Fx SM SC 20km (8*POE+)
