Product Features
Description:
Brief Introduction:

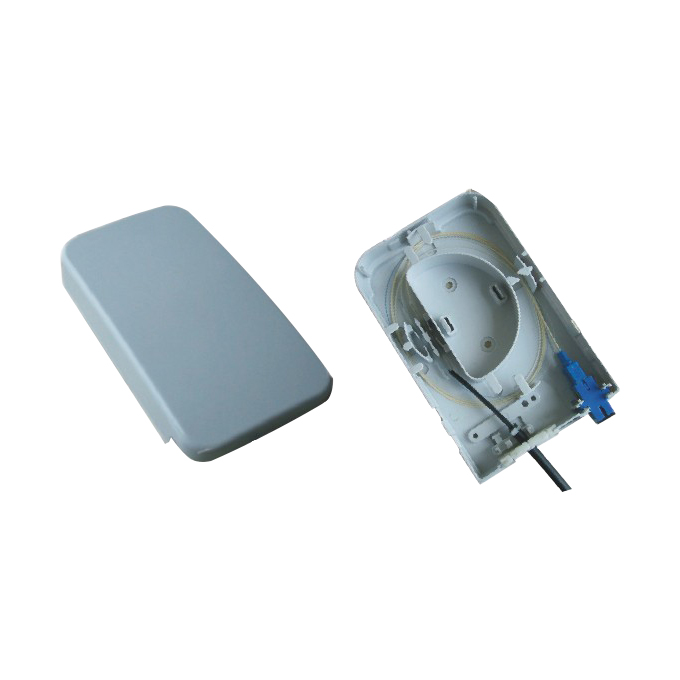

Used in the end termination of residential buildings and villas,to fix and splice with pigtails.
• Small size, light weight, pleasing in appearance
• Can be installed on the wall with mechanical protective function
• May adapt variety of optical connection styles.
• Optical fiber can be managed effectively
• Set strengthen device and fiber optic cable mounting seat
• SC 2 cores，LC 4 cores。Max capacity for SC 2 cores or LC 4 cores
• Suitable for indoor wall mount
Specification:
Specification:
|
Item |
FTB-102 |
|
Dimension（mm） |
H205×W115×D35 |
|
Weight（Kg） |
0.25 |
|
Cable diameter (mm) |
Φ7~Φ14 |
|
Cable port |
2 holes |
|
Max capacity of splice tray |
2-4（single fiber） |
|
Max No of splice tray |
1 |
|
Max capacity of cable |
4（single fiber） |
Kit content：
|
Item |
Type |
Quantity |
|
Fiber protective sleeves |
60mm |
According to cores |
|
Cable tie |
60mm |
10×splice tray |
|
Nails of installation |
Nail |
2 pcs |
Packing information：
|
Model |
Inner carton dimension （mm) |
Inner carton weight（kg) |
Outer carton dimension （mm) |
Outer carton weight（kg) |
No of units per carton（pcs) |
|
FTB-102 |
225×125×40 |
0.25 |
540×350×370 |
15.5 |
50 |
