19 Slide Rail Rack Frames

Brief Introduction: ODF Unit Fiber Optic Distribution Frame can be used in the termination and distribution of partial trunk fiber cabling fiber cable communication system, easy to realize connection, distribution and adjustment. Optical Distribution F

19 Slide Rail Rack Frames

Brief Introduction: ODF Unit Fiber Optic Distribution Frame can be used in the termination and distribution of partial trunk fiber cabling fiber cable communication system, easy to realize connection, distribution and adjustment. Optical Distribution F
Product Features
Description:

Brief Introduction:

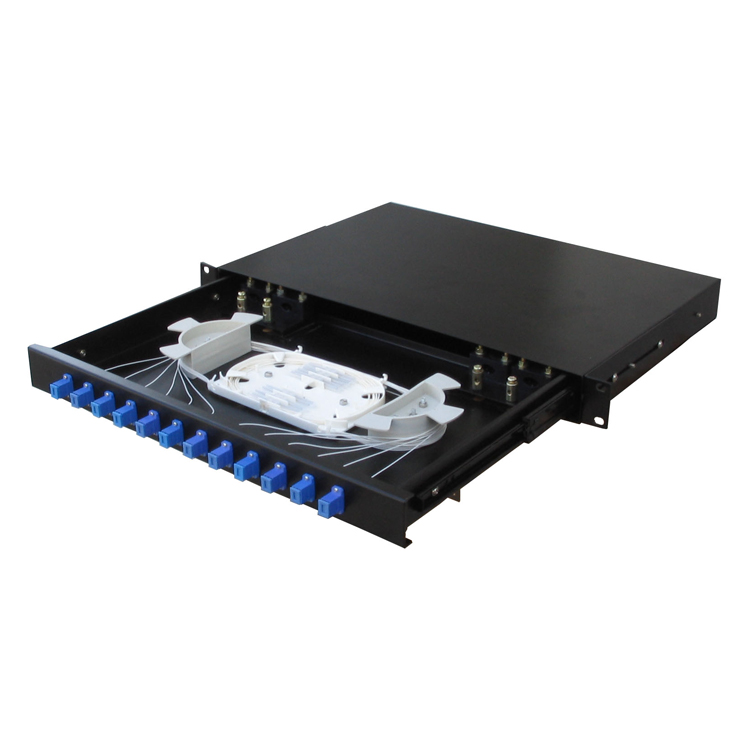

It is Sliding Type of Rack Mount Slide Fiber Terminal Box is ranging from 12 ports to 48 ports. It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network. One cabinet design provides OSP cable fibers and pigtail splicing, patch cords termination and storage. Each Terminal Box is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.


Specification:

• 19" Rack, cabinet mountable
• One cabinet design provides OSP cable fibers and pigtail splicing, patch cord termination and storage.
• Slide out features and Modular Adaptor Panel for ease of Installation, Inspection and Testing.
• Aluminum housing, epoxy coating, beige color, powder coating is optional.
• FC/SC/ST/Others Adapters for Option, available.

Application:
• Local Area Network
• CATV Network
• FTTx System
• Wide Area Network
•Test Instruments

Ordering Info

Tyep

Dimension(mm)

Max capacity(cores)

Remark

SL-SC12

430*250*1U

12

high quality cold rolled steel sheet and
good electrostatic spraying.
The fiber adaptors and pigtails are ptional
and  available for FC,ST,SC,LC

SL-SC12

24

SL-FC24

430*300*1U

24

SL-2SC24

48

SL-FC48

430*300*2U

48
