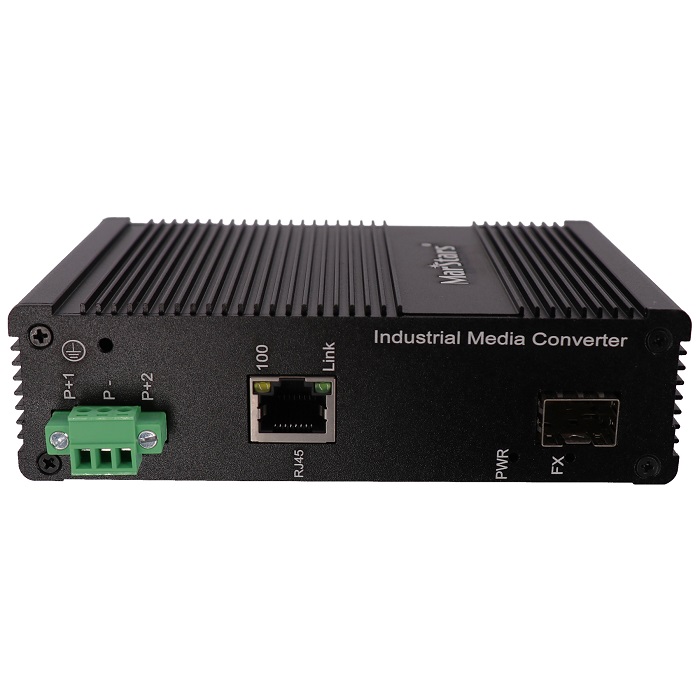

1-Port 10/100Base-Tx Industrial Media Converter_Shenzhen Marstars Technology Co.,Ltd

Product Features

Description:

- 1x10/100Base-TX RJ45 ports, 1x100Base-FX Fast SFP ports, 1xPoE

- Support Auto-MDIX, and full/half duplex self-negotiation mode

- Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission

- Support 16K bytes giant frame, compatible with various extension protocol

- 2K MAC address table

- Support IEEE802.3az energy efficient Ethernet technology

- Support IPv6 Protocol

- Electric 4KV surge protection, easy to use in outdoor environment

- Complete status indicator, working state at a glance

- Power input polarity protection design, no worry about wrong operation

- Metal case, no fan design

- Installation method: DIN trail /Wall mounting

Specification:

Physical Port
Copper Ports	1 10/100Base-T RJ45 auto MDI-MDI-X
Fiber Ports	1 1000Base-SX/LX/BX SFP interfaces
Parameters
Ethernet standards	IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3x
Bandwidth	1.0Gbps
Buffer Memory	1M bits on-chip buffer memory
Jumbo Frame	Up to1532Bytes
MAC address table	1K entries
ESD Protection	6KV
Transmission mode	Store and Forward(full/half duplex mode)
LED Indicator
Power	Connect-always
RJ45	Link/Act: connect-always; data exchange-blink Speed light: 100Mbps-always; 10Mbps-blink
Power Information
Power access mode	Phoenix terminal Block
Redundant power input	9-56VDC
Overload protection	Yes
Power reverse	Support
Power consumption	Full-load<10W
Power over Ethernet (For item with POE Function)
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Output	Per port 54V DC Max. 30 watts
PoE Power Budget (max.)	40W maximum
Number of PoE Ports	1
Physical Property
Protection grade	IP40 aluminum case
Cooling mode	Natural cooling, no fan design
Dimensions	130mm x 94mm x 35mm (L x W x H)
Installation mode	DIN-rail / wall-mountable
Weight	500g
Working Environment
Operating Temperature	-40℃~75℃
Operating Humidity	5%~90% non-condensing
Storage	-40℃~85℃
Warranty
MTBF	50,000 hours
Defects Liability Period	3 year warranty, lifetime technical support
Certification Standard
EMI	FCC Part15 Subpart B Class A,EN 55022 Class A
EMS	EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety grade	EN60950-1

Ordering Info

Model No.	Description
MT-FI2100-1S	10/100M Industrial Media Converter 1100Base-FX SFP Slot and 110/100Base-Tx
MT-FC2100-1F-S20	10/100M Industrial Media Converter 1100Base-FX and 110/100Base-Tx
