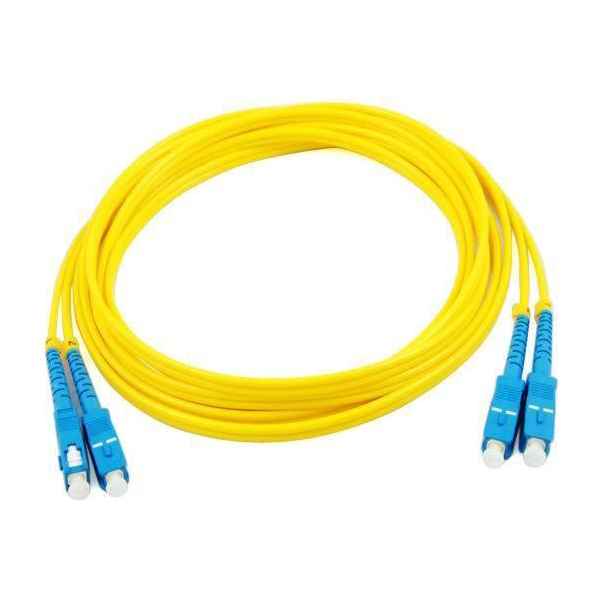

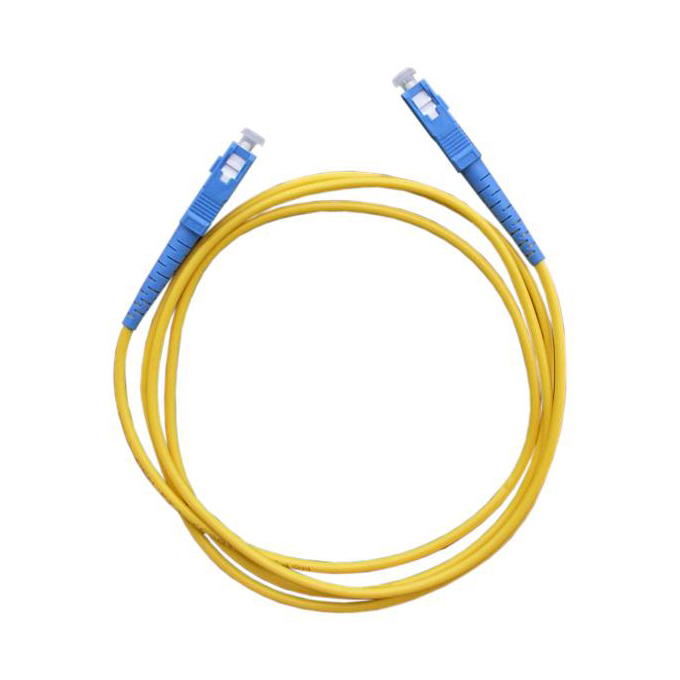

Patch Cord SC-SC

The fiber optic patch cord are mainly used on patch panel or for the connection between outlets and terminal equipments. The quality of connectors and fibers are mainly determined by the insertion loss and return loss.

Patch Cord SC-SC

The fiber optic patch cord are mainly used on patch panel or for the connection between outlets and terminal equipments. The quality of connectors and fibers are mainly determined by the insertion loss and return loss.
Product Features
Description:

Brief Introduction:
The fiber optic patch cord are mainly used on patch panel or for the connection between outlets and terminal equipments.The quality of connectors and fibers are mainly determined by the insertion loss and return loss. Our fiber patch cord applies to GR-326-CORE Standard Low Insertion Loss, High Return Loss100% End- face Geometric Specification controlled Economical in both design and termination process.

Features:
• SM & MM available
• Standard & custom configurations
• Meets Telecordia-GR-326-CORE specifications
• Low insertion loss
• Ultra low back reflection
• For 3.0mm, 2.4mm, 2.0mm jacket or 900μm buffer.

Specification:

·Telecommunication networks
·Data communication networks
·CATV networks
·Active device termination
·Instrumentation
·FTTX


Technical Specifications:
  SM MM
Type FC,SC,ST,MU,LC,
D4,DIN,E2000
MT-RJ
MPO
FC,SC,ST,MU,
LC,SMA,E2000
MT-RJ,FDDI,
MPO,ESCON
Insertion Loss (dB) ≤ 0.3 ( PC )
≤ 0.2 (UPC )
≤ 0.3 (APC )
≤ 0.3 ( PC ) ≤ 0.2 ( PC )
Return Loss (dB) ≧ 45 ( PC )
≧ 50 (UPC )
≧ 65 (APC )
≧ 35 (PC)
Exchangeability ≤ 0.2 dB ( Connect Randomly )
Tensile Strength ≤ 0.2 dB ( 0 ~15 Kgf )
Vibration ≤ 0.2 dB ( 5~50Hz, 1.5mm Amplitude )
Operating Temperature -40℃~+75℃
Storage Temperature -55℃~+80℃
