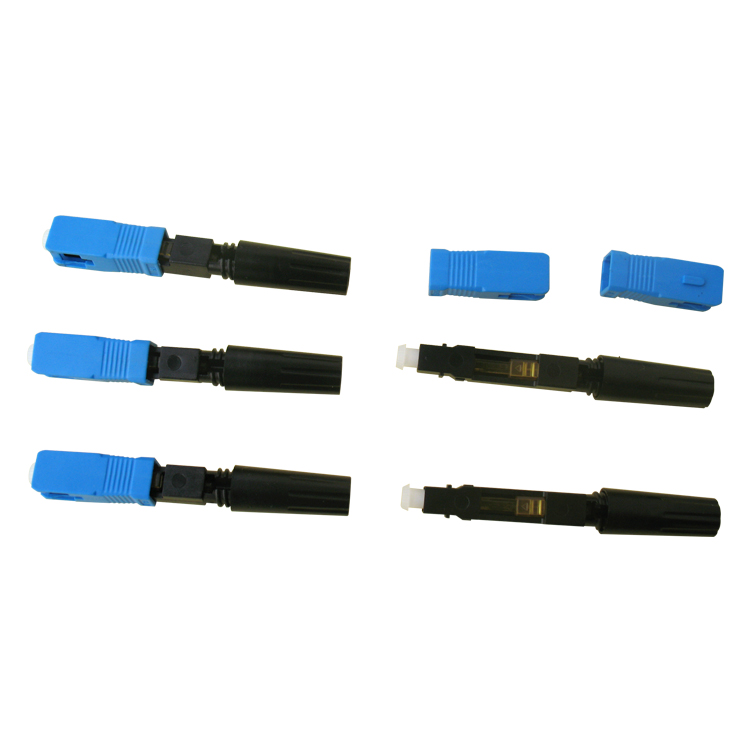

Fast Assembly Connector

Brief Introduction:The Fast Connectorhas easy assembly andexcellent stability features without further processing, such as polishing,adhesives to facilitate the termination of the fiber in the fieldandworking hardto secure spaceenvironment alone can acces

Fast Assembly Connector

Brief Introduction:The Fast Connectorhas easy assembly andexcellent stability features without further processing, such as polishing,adhesives to facilitate the termination of the fiber in the fieldandworking hardto secure spaceenvironment alone can acces
Product Features
Description:

Brief Introduction:

The Fast Connector has easy assembly andexcellent stability features without further processing, such as polishing,
adhesives to facilitate the termination of the fiber in the fieldandworking hardto secure space
environment alone can access for assembling like pole, manholes.
In addition, it can be reducedthe defect rate dramatically by worker's connection error, due to  being able to reconnected.

Features:
Optical Fiber fast Assembly Connector
1. No special assembling tool
2. Easy for assembling with mechanical splice and no polishing
3. Easy for learning technology by a simple assembling method (within 1 and half minutes)
4. Minimize the defect rate by features of removal and reusable.



Specification:

Model

MS-925B

MS-925BP(drop cable)

For optical cable with (∮)mm

0.25-0.25

3.1x2.0

0.25-0.9

0.9-0.9

Optical fiber diameter

125 um

Coating diameter

250 um

Fastening force of naked fiber

>5N

Operation time

150 s

Insert loss

Type Value < 0.1 dB

Return loss

< -40dB

Using temperature

-40~+75℃

Tension strength

10N
