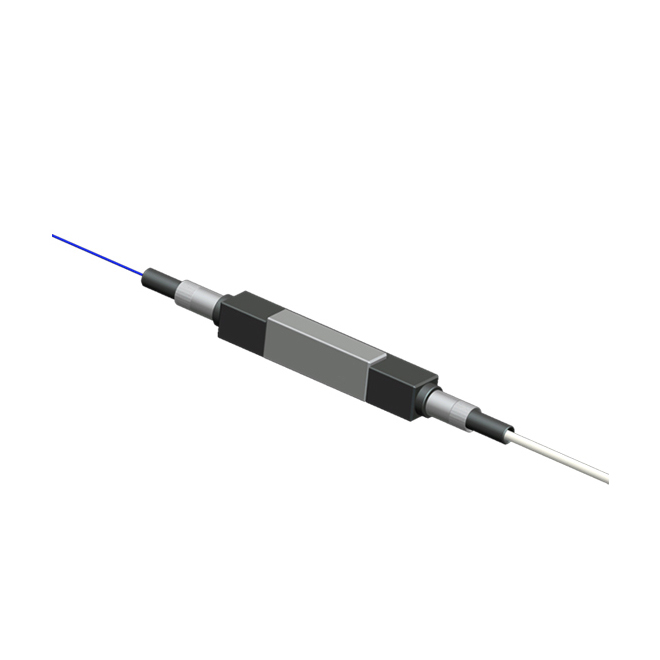

Optical Mechanical Splicer

mechanical splicer apply in
1. FTTx application
2. Easy and fast installation
3. No any other tools needed

Optical Mechanical Splicer

mechanical splicer apply in
1. FTTx application
2. Easy and fast installation
3. No any other tools needed
Product Features
Description:

Brief Introduction:
mechanical splicer apply in:
1.FTTx application
2.Easy and fast installation
3.No any other tools needed

Specification:



ITEM

Technical Parameters

Applicable for

φ0.25mm&0.90mm Fiber

Optical fiber diameter

125μm(652A&657B)

Tight buffer diameter (μm)

250μm

Fiber mode

Single & multi mode

Operation time

About 10s(no fiber cut)

Aberage Insert loss

≤0.10dB(1310nm &1550nm)

Return loss

≤-40dB

Fastening strength of naked fiber

5N

Fastening strength of naked fiber holder

10N

Using temperature

-40~+75°C

Repeatability(10 times)

IL≤0.2dB  RL≤5dB
