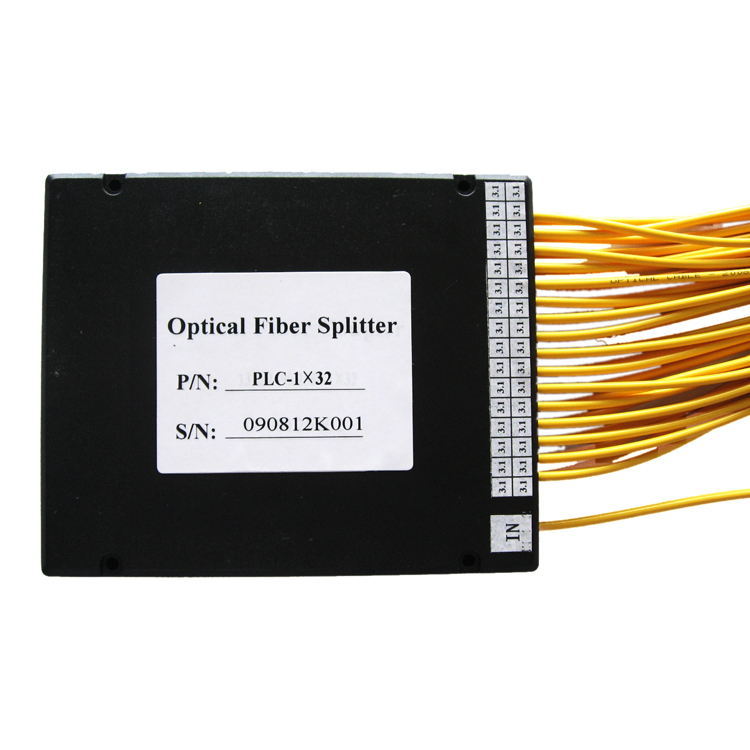

PLC Splitter

• Low Insertion Loss
• Low PDL
• Excellent Environmental & Mechanical Stability
• Qualified Under Telcordia GR-1221 and GR-1209
• FTTX (FTTP, FTTH, FTTN, FTTC)
• Passive Optical Networks (PON)
• Local Area Networks (LAN)
• Cable Television
• Test Equipments

PLC Splitter

• Low Insertion Loss
• Low PDL
• Excellent Environmental & Mechanical Stability
• Qualified Under Telcordia GR-1221 and GR-1209
• FTTX (FTTP, FTTH, FTTN, FTTC)
• Passive Optical Networks (PON)
• Local Area Networks (LAN)
• Cable Television
• Test Equipments
Product Features
Description:

Brief Introduction:
•  Low Insertion Loss
•  Low PDL
•  Excellent Environmental & Mechanial Stability
•  Qualified Under Telcordia GR-1221 and GR-1209
•  FTTX(FTTP,FTTH,FTTN,FTTC)
•  Passive Optical Networks(PON)
•  Local Area Networks(LAN)
•  Cable Television
•  Test Equipments

Specification:

Parameter

Specification

Operating Wavelength (nm)

1280 ~ 1650

Type

1x4

1x8

1x16

2x16

1x32

2x32

Insertion Loss (dB) Max.*

< 7.3

< 11.0

< 14.0

< 14.3

< 18

< 18.8

Uniformity (dB) Max*

< 1.0

< 1.0

< 1.5

< 2.5

< 2.0

< 2.5

PDL (dB) Max*

< 0.3

< 0.3

< 0.4

< 0.4

< 0.45

< 0.45

Dimensions (HxWxL) (mm)

4x4x38

4x4x40

4x5x50

4x7x60

4x7x60

4x7x70

Directivity (dB) Min*

55

Return Loss (dB) Min*

50

Operating Temperature (° C)

-40 ~ +85

Storage Temperature (° C)

-40 ~ +85

Fiber Length

1m or custom length

Fiber Type

Corning singlemode SMF-28

Connector Type

Custom specified



Ordering Info



Wavelength

Grade

Port

Input Pigtail Style

Fiber Length

Input Connector

Output Connector

PLC

35=1310/1550nm 13=1310nm 15=1550nm

P=P grade

0104=1x4
0108=1x8 0116=1x16 0132=1x32 0216=2x16 0232=2x32

1=Bare Fiber
2=900um Jacket

1=1m
  2=2m

0=None
  1=FC/APC
  2=FC/PC
  3=SC/APC
  4=SC/PC
  5=ST
  6=LC
  X=Special

0=None
1=8 Fiber MPO (male)2=8 Fiber MPO (famale)
