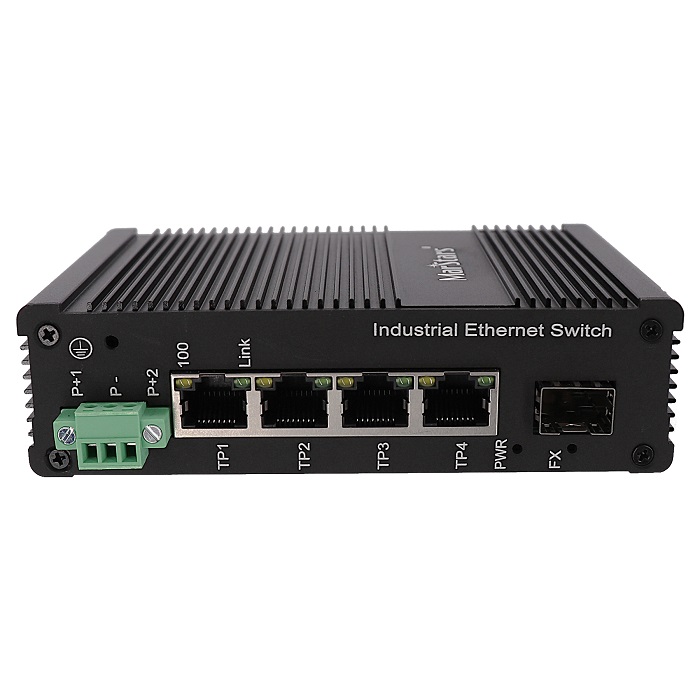

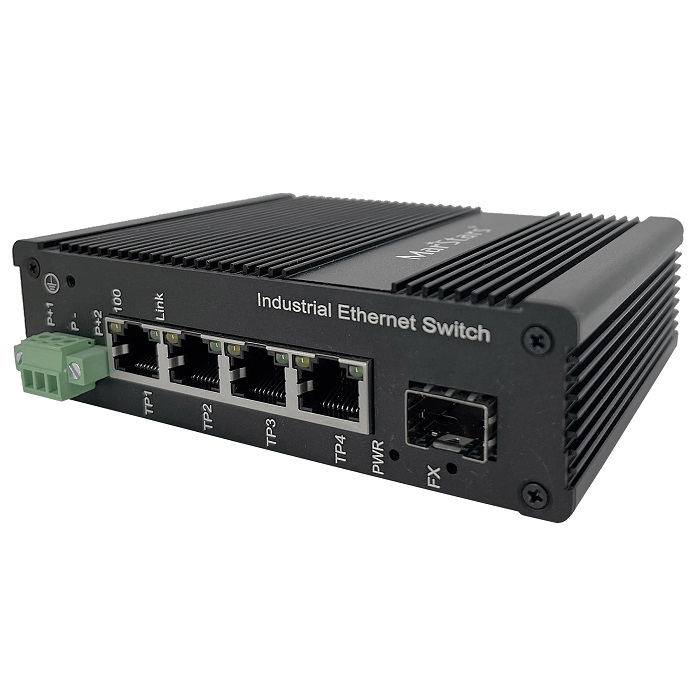

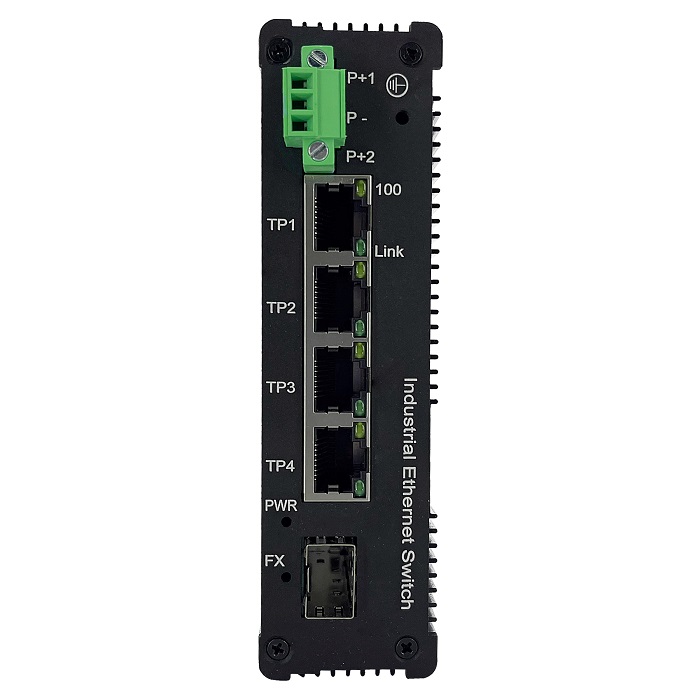

4x10/100Base-TX + 1x100Base-FX SFP/4xPoE

100Base-Fx to 4*10/100Base-Tx Industrial Ethernet Switch

4x10/100Base-TX + 1x100Base-FX SFP/4xPoE

100Base-Fx to 4*10/100Base-Tx Industrial Ethernet Switch
Product Features
Description:

- 4x10/100Base-TX RJ45 ports, 1x100Base-FX Fast SFP ports, 4xPoE
- Support Auto-MDIX, and full/half duplex self-negotiation mode
- Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
- Support 16K bytes giant frame, compatible with various extension protocol
- 2K MAC address table
- Support IEEE802.3az energy efficient Ethernet technology
- Support IPv6 Protocol
- Electric 4KV surge protection, easy to use in outdoor environment
- Complete status indicator, working state at a glance
- Power input polarity protection design, no worry about wrong operation
- Metal case, no fan design
- Installation method: DIN trail /Wall mounting

Specification:
Physical Port
Copper Ports 4 10/100Base-T RJ45 auto MDI-MDI-X
Fiber Ports 1 1000Base-SX/LX/BX SFP interfaces
Parameters
Ethernet standards IEEE802.3 IEEE802.3u IEEE802.3z
IEEE802.3x
Bandwidth 1.0Gbps
Buffer Memory 1M bits on-chip buffer memory
Jumbo Frame Up to1532Bytes
MAC address table 1K entries
ESD Protection 6KV
Transmission mode Store and Forward(full/half duplex mode)
LED Indicator
Power Connect-always
RJ45 Link/Act: connect-always; data exchange-blink
Speed light: 100Mbps-always; 10Mbps-blink
Power Information
Power access mode Phoenix terminal Block
Redundant power input 9-56VDC
Overload protection Yes
Power reverse Support
Power consumption Full-load<10W
Power over Ethernet  (For item with POE Function)
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Output Per port 54V DC
Max. 30 watts
PoE Power Budget (max.) 60W maximum
Number of PoE Ports 4
Physical Property
Protection grade IP40 aluminum case
Cooling mode Natural cooling, no fan design
Dimensions 130mm x 94mm x 35mm (L x W x H)
Installation mode DIN-rail / wall-mountable
Weight 500g
Working Environment
Operating Temperature -40℃~75℃
Operating Humidity 5%~90% non-condensing
Storage -40℃~85℃
Warranty
MTBF 50,000 hours
Defects Liability Period 3 year warranty, lifetime technical support
Certification Standard
EMI FCC Part15 Subpart B Class A,EN 55022 Class A
EMS EN61000-4-2(ESD), EN61000-4-3(RS),
EN61000-4-4(EFT), EN61000-4-5(Surge),
EN61000-4-6(CS), EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety grade EN60950-1

Ordering Info
Model No. Description
MT-FI2104-1S 10/100M Industrial Media Converter 1*100Base-FX SFP Slot and 4*10/100Base-Tx
MT-FC2104-1F-S20 10/100M Industrial Media Converter 1*100Base-FX and 4*10/100Base-Tx
MT-FI2204-1S 10/100M Industrial Media Converter 2*100Base-FX SFP Slot and 4*10/100Base-Tx
MT-FC2204-1F-S20 10/100M Industrial Media Converter 2*100Base-FX and 4*10/100Base-Tx
