5口百兆光纤交换机

The 5-port fiber switch is with 100M optical fiber port and 10/100M Ethernet RJ45 ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.

5口百兆光纤交换机

The 5-port fiber switch is with 100M optical fiber port and 10/100M Ethernet RJ45 ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
产品描述
简要概述:

• 1~4 ports 10/100M Ethernet switch with built in transceivers
• It convert Optical-Electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interface (FX)
• UTP port supports MDI/MDI-X auto crossover
• Broadcast storm protection

技术规格:

• 1~4 ports 10/100M Ethernet switch with built in transceivers and memory
• Build in SRAM for frame buffer
• Build in storage of 1K MAC address;
• Compliance with IEEE802.3, 802.3u, 802.3 x standards
• Compliance CSMA/CD Protocol;
• Converter twisted-pair cable to 100Base-Fx fiber;
• Support 10/100Mbps auto-negotiation for RJ45 ports
• Support auto MDI/MDI-X function for RJ45 ports
• Passed maximum frame size 1536 bytes
• Broadcast storm protection;
• Fiber Port SC/PC (single/multi-mode), the transmission distance can up to 120Km
• RJ45 Port: 100m for 100Base-Tx UTP Cat.5 cable
• Inside power: AC 220/110V
• Power Consume: < 5W
• INPUT: 110-260V AC
• Operating temperature: 0 ℃ -50 ℃
• Storage temperature: -40~ 70 ℃
• Humidity: 5-90%(non-condensing)

型号描述:
Model No. Description
MT-FS1005-1F Fiber Switch 1 x 100Base-Fx + 4 x 10/100Base-Tx

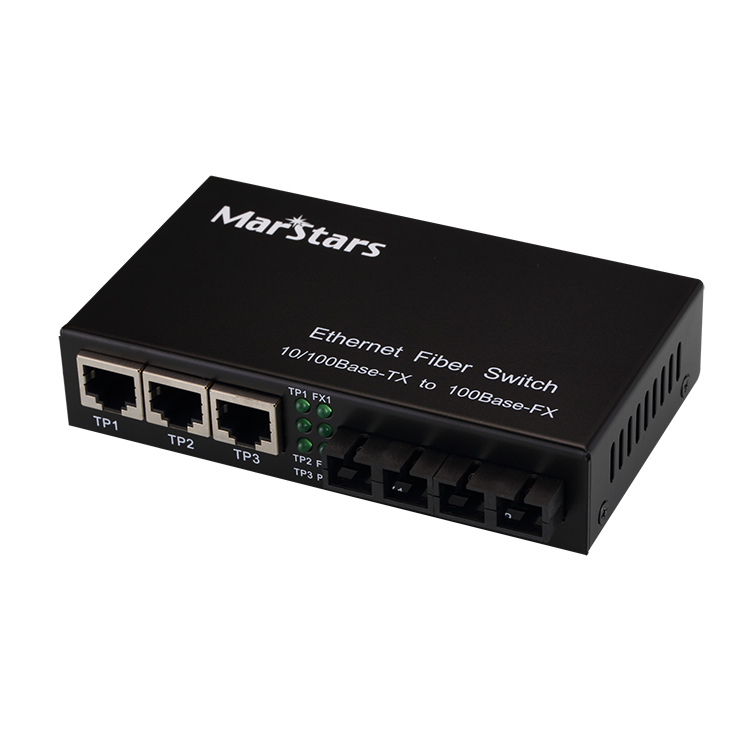

MT-FS1005-2F Fiber Switch 2 x 100Base-Fx + 3 x 10/100Base-Tx

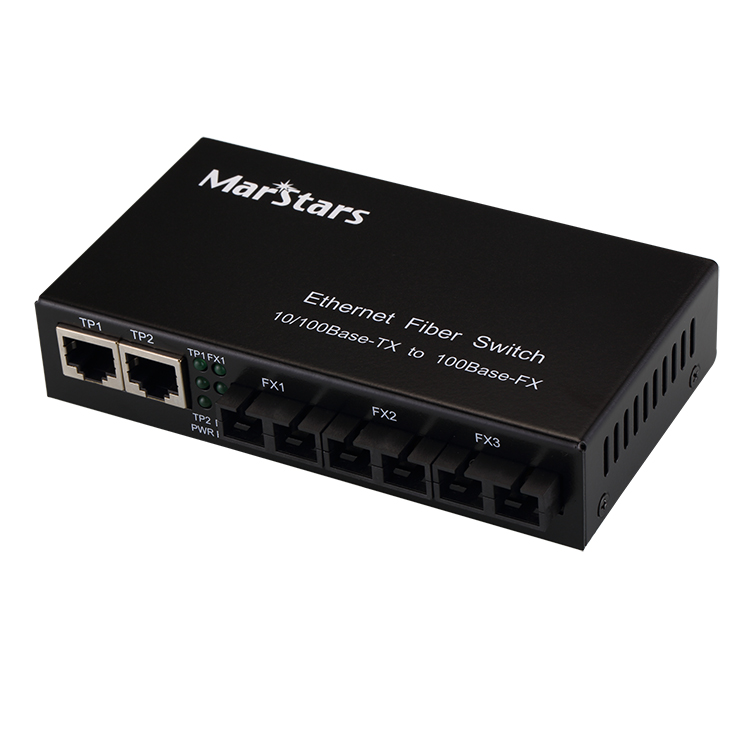

MT-FS1005-3F Fiber Switch 3 x 100Base-Fx + 2 x 10/100Base-Tx
MT-FS1005-4F Fiber Switch 1 x 100Base-Fx + 4 x 10/100Base-Tx
