千兆2光8电工业级POE交换机

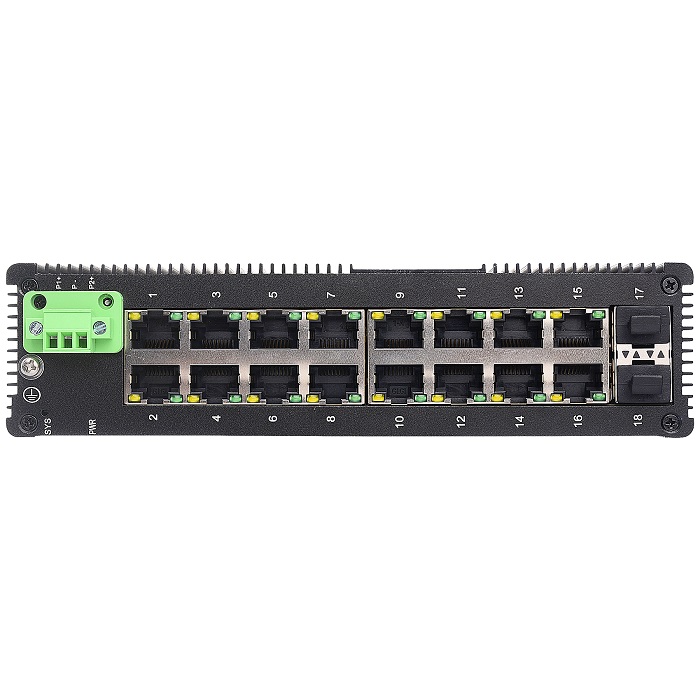

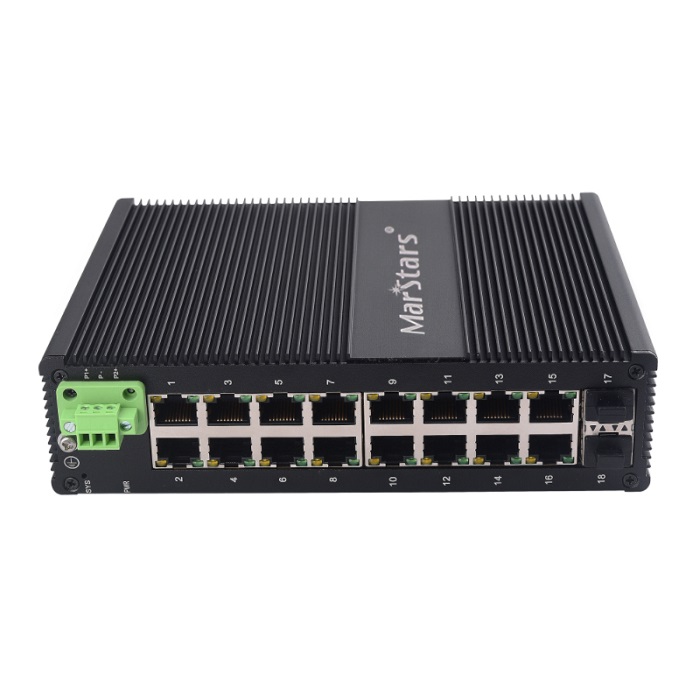

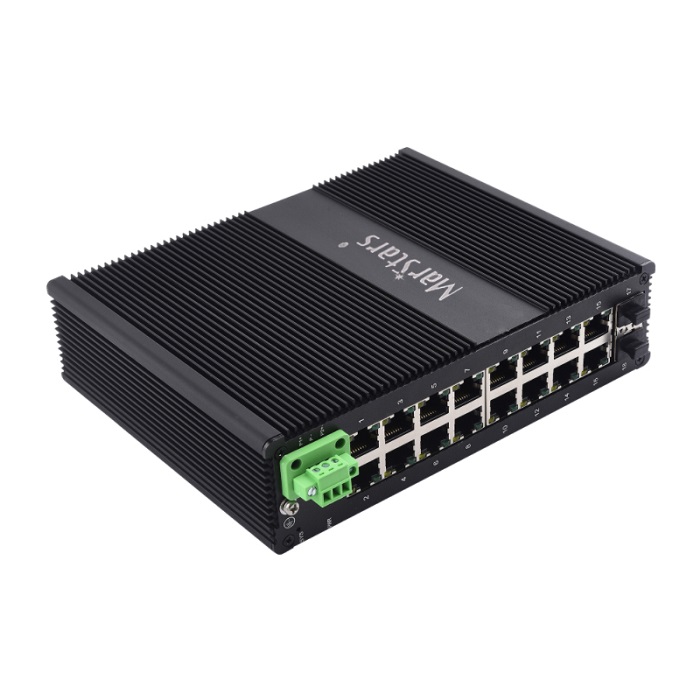

16-Port 10/100/1000Base-Tx and 2-Port 1000Base-Fx Industrial Fiber Switch

千兆2光8电工业级POE交换机

16-Port 10/100/1000Base-Tx and 2-Port 1000Base-Fx Industrial Fiber Switch
产品描述
简要概述:

-16x10/100/1000Base-TX RJ45 ports, 2x1000Base-FX Fast SFP ports
-Support Auto-MDIX, and full/half duplex self-negotiation mode
-Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
-Support 16K bytes giant frame, compatible with various extension protocol
-16K MAC address table
-Support IEEE802.3az energy efficient Ethernet technology
-Support IPv6 Protocol
-Electric 4KV surge protection, easy to use in outdoor environment
-Complete status indicator, working state at a glance
-Power input polarity protection design, no worry about wrong operation
-Metal case, no fan design
-Installation method: DIN-rail /Wall mounting

技术规格:
Physical Port
Copper Ports 16 10/100/1000Base-T RJ45 auto MDI-MDI-X
Fiber Ports 2 1000Base-SX/LX/BX SFP interfaces
Parameters
Ethernet standards IEEE802.3 IEEE802.3u IEEE802.3z
IEEE802.3ab IEEE802.3x IEEE802.3az
IEEE802.3ah IEEE802.1X IEEE802.1Q
Bandwidth 40.0Gbps
Buffer Memory 8M bits on-chip buffer memory
Jumbo Frame Up to10k Bytes
MAC address table 16K entries
ESD Protection 6KV
Transmission mode Store and Forward(full/half duplex mode)
LED Indicator
Power Connect-always
RJ45 Link/Act: connect-always; data exchange-blink
Speed light: 100Mbps-always; 10Mbps-blink
Fiber Link/Act: connect-always; data exchange-blink
Power Information
Power access mode Phoenix terminal Block
Redundant power input 9-56VDC
Overload protection Yes
Power reverse Support
Power consumption Full-load<10W
Physical Property
Protection grade IP40 aluminum case
Cooling mode Natural cooling, no fan design
Dimensions 180mm x 146mm x 47mm (L x W x H)
Installation mode DIN-rail / wall-mountable
Weight 750g
Working Environment
Operating Temperature -40~75
Operating Humidity 5%~90% non-condensing
Storage -40~85
Warranty
MTBF 50,000 hours
Defects Liability Period 3 year warranty, lifetime technical support
Certification Standard
EMI FCC Part15 Subpart B Class A,EN 55022 Class A
EMS EN61000-4-2(ESD), EN61000-4-3(RS),
EN61000-4-4(EFT), EN61000-4-5(Surge),
EN61000-4-6(CS), EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety grade EN60950-1

Ordering Info
Model No. Description
MT-FI4216-2S Gigabit Industrial Switch 16-Port 10/100/1000Base-Tx and 2-Port 1000Base-Fx SFP slot
MT-FI4216 Gigabit Industrial Switch with pure 16-Port 10/100/1000Base-Tx
