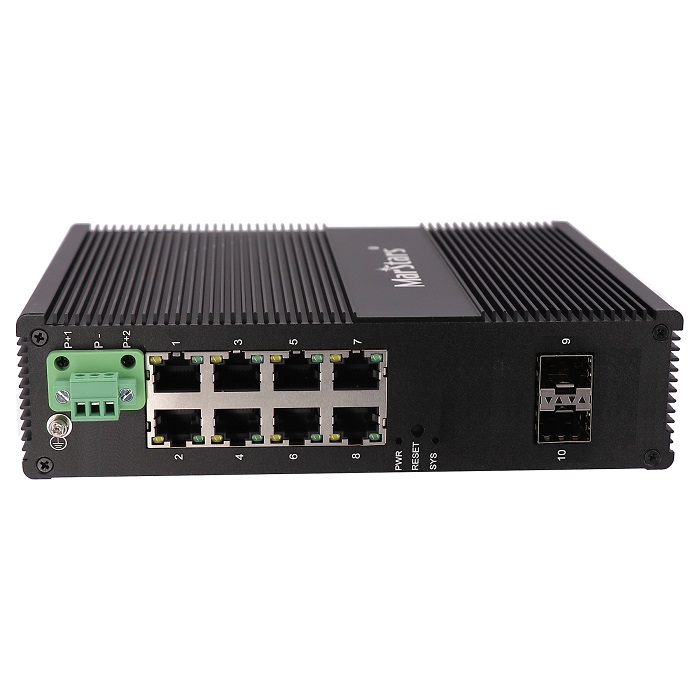

百兆1光8电工业级交换机

1000Base-Fx to 8*10/100Base-Tx Industrial Ethernet Switch

百兆1光8电工业级交换机

1000Base-Fx to 8*10/100Base-Tx Industrial Ethernet Switch
产品描述
简要概述:

- 8x10/100Base-TX RJ45 ports, 1x1000Base-FX Fast SFP ports, 8xPoE
- Support Auto-MDIX, and full/half duplex self-negotiation mode
- Provide SC/FC/ST/LC interface fiber port, support  single/dual fiber transmission
- Support 9K bytes giant frame, compatible with various  extension protocol
- 4K MAC address table
- Support IEEE802.3az energy efficient Ethernet technology
- Support IPv6 Protocol
- Electric 4KV surge protection, easy to use in outdoor environment
- Complete status indicator, working state at a glance
- Power input polarity protection design, no worry about wrong operation
- Metal case, no fan design
- Installation method: DIN trail /Wall mounting

技术规格:
Physical Port
Copper Ports 8 10/100Base-T RJ45 auto MDI-MDI-X
Fiber Ports 1 1000Base-SX/LX/BX SFP interfaces
Parameters
Ethernet standards IEEE802.3 IEEE802.3u IEEE802.3z
IEEE802.3ab IEEE802.3x IEEE802.3az
IEEE802.3ah IEEE802.1X IEEE802.1Q
Bandwidth 4.0Gbps
Buffer Memory 2M bits on-chip buffer memory
Jumbo Frame Up to 9k Bytes
MAC address table 4K entries
ESD Protection 6KV
Transmission mode Store and Forward(full/half duplex mode)
LED Indicator
Power Connect-always
RJ45 Link/Act: connect-always; data exchange-blink
Speed light: 100Mbps-always; 10Mbps-blink
Power Information
Power access mode Phoenix terminal Block
Redundant power input 9-56VDC
Overload protection Yes
Power reverse Support
Power consumption Full-load<10W
Power over Ethernet  (For item with POE Function)
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Output Per port 54V DC
Max. 30 watts
PoE Power Budget (max.) 120W maximum
Number of PoE Ports 8
Physical Property
Protection grade IP40 aluminum case
Cooling mode Natural cooling, no fan design
Dimensions 130mm x 94mm x 35mm (L x W x H)
Installation mode DIN-rail / wall-mountable
Weight 500g
Working Environment
Operating Temperature -40~75
Operating Humidity 5%~90% non-condensing
Storage -40~85
Warranty
MTBF 50,000 hours
Defects Liability Period 3 year warranty, lifetime technical support
Certification Standard
EMI FCC Part15 Subpart Class A,EN 55022 Class A
EMS EN61000-4-2(ESD), EN61000-4-3(RS),
EN61000-4-4(EFT), EN61000-4-5(Surge),
EN61000-4-6(CS), EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety grade EN60950-1

Ordering Info
Model No. Description
MT-FI3108-1GS Industrial Media Converter Combo 1*1000Base-FX SFP/ GE UTP Port and 8*10/100Base-Tx
MT-FC3108-1GF-S20 Industrial Media Converter Combo 1*1000Base-FX/ GE UTP Port and 8*10/100Base-Tx
MT-FC3108-1G Industrial Media Converter 1*10/100/1000Base-TX Port and 8*10/100Base-Tx
MT-FI3108-1GS-8P POE Industrial Media Converter Combo 1*1000Base-FX SFP/ GE UTP Port and 8*10/100Base-Tx (8*POE+)
MT-FC3108-1GF-S20-8P POE Industrial Media Converter Combo 1*1000Base-FX/ GE UTP Port and 8*10/100Base-Tx (8*POE+)
MT-FC3108-1G-8P POE Industrial Media Converter 1*10/100/1000Base-TX Port and 8*10/100Base-Tx (8*POE+)
